These days I'm crazy busy,I was in many troubles during the last past 2 months, and now It's seems that my nightmare is coming to the end, becouse I've finished the 0.5KW~3KW EPS series models and all destroyer test numbers shows the sys works well.
Some part test result as follow,
Machine model: BD-S3KW(EPS-3KW)
Temp:23℃
Humi:80%
-------------------------------------------------
1,inverter status empty loade test
  battery voltage:54V
  output voltage:220V
  frequency:50HZ
  battery current:0.67A
  noise:<40dB
------------------------------------------
2 inverter status full loade test
  loade:600W(resistance)+1.7kw(fluorescence lights,Λ=0.6)+1.5kw(air compressor)
  soft start: OK
full loade concuss test:OK
efficiency:98%
sine wave distortion: bad distortion of course can work
------------------------------------
3 charge test
totale time<20h ,When the battery charged to 95%

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/40/1145854716.jpg');}" onmousewheel="return imgzoom(this);">

Inner structure design in 3D which make us easy to control the details!!!!

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/40/1145861373.jpg');}" onmousewheel="return imgzoom(this);">

Main inverter sys module struture! And We own the patent right,which make the after service very convenience and easy!!
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/40/1145862459.jpg');}" onmousewheel="return imgzoom(this);">

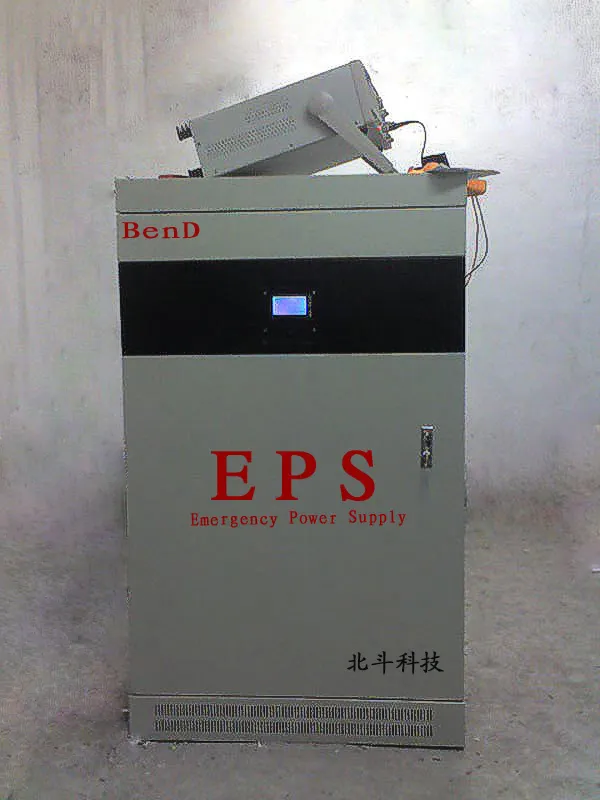

the finished product appearance!
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/40/1145862646.jpg');}" onmousewheel="return imgzoom(this);">

**此帖已被管理員刪除**

外觀沒什么好看.一種設計理念.關鍵性能表現:3KW-48V的EPS能帶600W+1.7KW(功率因數為0.6應急燈)+1.5KW空氣壓縮機器.試問哪一臺機器能輕松做到?

主變是工頻變壓器還是高頻變壓器?

是工頻隔離變壓器輸出

工頻變壓器只是隔離不升壓?jiǎn)?還是既升壓又隔離?

都有.目前是按照載波16KHZ頻率設計.
xzszrs兄,假如我把SPWM載頻提高到100KHZ可以大幅度降低變壓器體積.
你說呢?

我說嘛,變壓器輸入的是兩種信號成分:工頻和載頻,輸出的是工頻,也就是說傳遞的功率信號是工頻,所以它必需按照工頻變壓器的標準設計,另一方面,它又要考濾載頻的輸入損耗,包擴銅損和鐵損,這里忽略銅損,主要考濾鐵損,鐵損隨載頻的升高并不是線性減小的,在5K以下下降曲線較陡,5K-20K下降緩慢,20K以上還會從某個點緩慢增加.所以說提高載頻很難大幅度減小工頻變壓器的體積.提高載頻到一定成度就只能白白地增加開關損耗了.SPWM工頻變壓器是工頻變壓器,但又比工頻變壓器要求高,要減小體積除了要合理選擇載頻外,更要選擇高導磁率高飽和點的鐵芯,
    要大幅度減小EPS整機的體積只有做高頻機,徹底地革除工頻主變!

我指的變壓器設計是采用鐵氧體磁心的EE-70的高頻變壓器.
假如任然按照工頻設計顯然會硅剛片飽和,損耗增加,溫度直線上升!
必須按照200KHZ的頻率設計高頻變壓器.
結果主要考慮是否會帶載性能下降.
假如結果只能帶一些容阻性負載,那也沒多大意義.

你想用EE70做SPWM輸出變壓器?

呵呵,只是想象!沒試過.
這幾天一直在考慮如何把那笨重的家伙去掉.

千萬別試,會短路的.你有沒有看明白我上面那段話,你要減小體積就先DC/DC到360V,再DC-AC到220C,主變就可用高頻的了.要隔離就做DC-DC隔離,還有驅動隔離.

!!!
這個辦法我可考慮過.顯然帶載性能不行呢!

誰說帶載不行,我?guī)展鉄粼囘^,也沒看到正弦波有明顯畸變.

按照功率1:1的配比能帶電機+節能燈的混合負載嗎?

現在我的3KWEPS,600W(電阻負載)+1.5KW空機+1.7KW(人=0.6)節能燈,DC啟動,滿負荷沖擊,轉換隨便怎么搞都非常穩定.
我想按照你那種設計的高頻不可能做到這些.當然帶感性負載時候會目前還有些畸變.

目前測試的空載DC電流損耗在0.65A

只單獨帶過風扇,沒問提.

0.65A還是比較大,我做了一個12V500W帶工頻變壓器的SPWM.DC空載0.3A.變壓器變比為:12V/220V/390V.

目前也正在優化.功率增大空載電流也會增加.應該適當?shù)靥幚硪幌骂l率和驅動的GND布局對空載損耗值會得到很大改善!之前我測過其他同等功率的機器有的達到1A電流!

減低空載損耗主要在變壓器.
