請問誰有市面上賣的48V的自行車充電器的電路圖
請問誰有市面上賣的48V的自行車充電器的電路圖??請高手賜教!~~~~~~~~~~~及~~~~~~~急~~~~~~~
全部回復(10)
正序查看
倒序查看

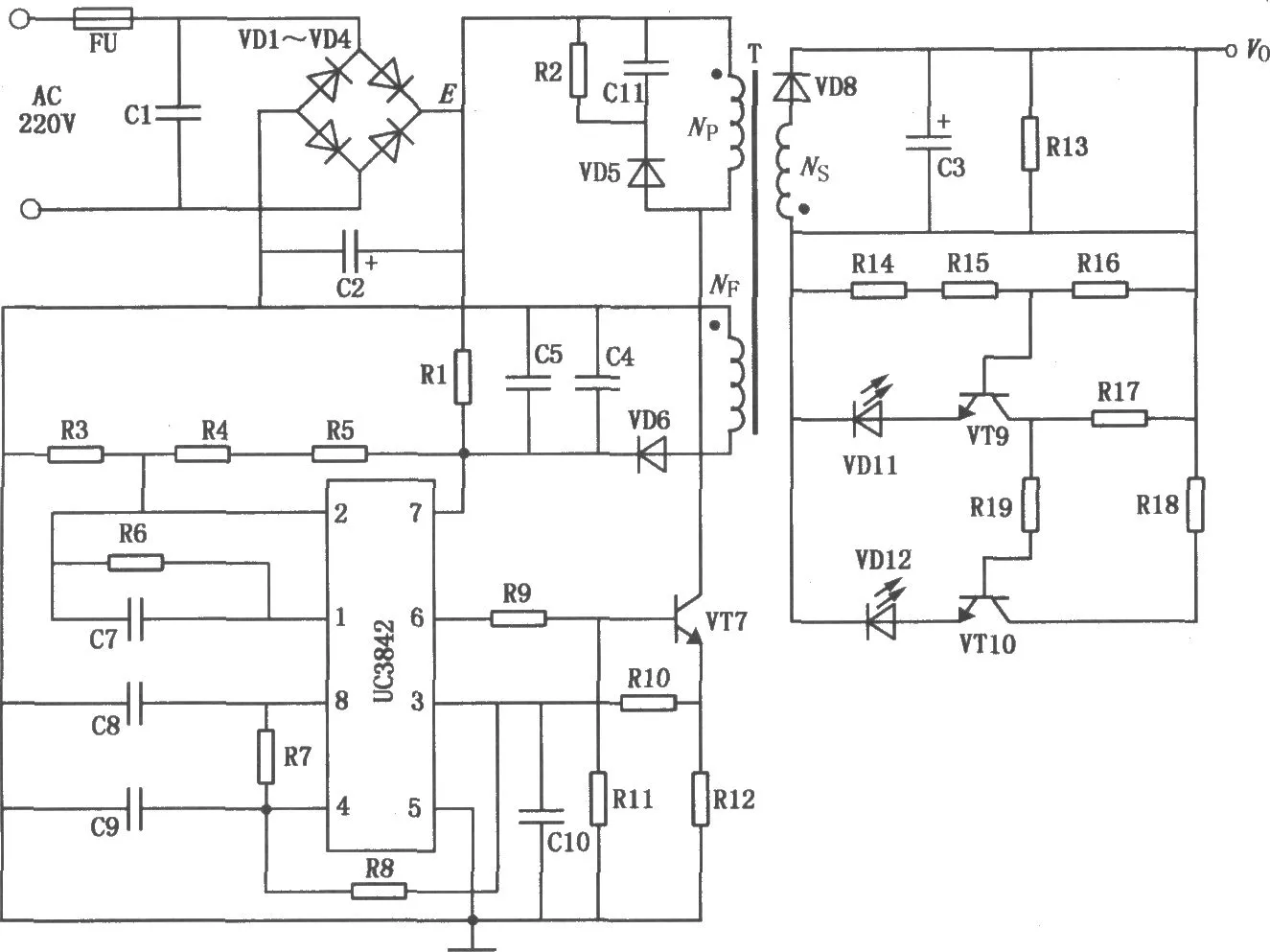

送你個圖,希望能幫到你.
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/61/1339251200656512.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/61/1339251200656512.jpg');}" onmousewheel="return imgzoom(this);"> 0
回復
@241388
送你個圖,希望能幫到你.[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/61/1339251200656512.jpg');}"onmousewheel="returnimgzoom(this);">
你給的電路圖怎么沒有標直啊?
0
回復
